CAD Dynamic Blocks Shelves and Storage 01

$9.00
Tax included
License

Digital Downloads

After completing your order, you will get a download link to your email.

Technical Specifications

A pack of 73 Dynamic CAD Blocks and Vector Drawings

File Format:

  • Vector File (SVG)
  • Adobe Illustrator File (AI)
  • CAD Blocks (DWG)

CAD (.dwg) Version: 2010

Licenses

Student License
Products labeled "Student License" are exclusively for student use in academic settings. These products are intended to support educational development and must not be employed for any commercial purposes.

Commercial License
With the purchase of a Commercial License, you are authorized to use the product in commercial projects without the need to attribute CADasBuilt. However, the standard prohibitions on reproduction, distribution, and resale, as detailed in the "Strictly Forbidden" section, remain applicable.

Strictly Forbidden
You are not allowed to reproduce, distribute, copy or sell the contents of CADasBuilt at any circumstances. Products can’t be sold without being part of a bigger project or work combining CADasBuilt digital products with other graphics, modeling or digital elements. Also, you are not allowed to use products from CADasBuilt in similar or any competing services.

For more info please visit our Terms of Use.

CAD Dynamic Blocks Shelves and Storage 01

Enhance your CAD drawings with our set of 73 CAD Dynamic Blocks Shelves and Storage 01. Each block is fully parametric – customize dimensions and views to perfectly fit your project. Perfect for interior and architectural projects where shelving design is crucial.

All standard views are included in a single DWG file: Top, Front, and Side. This makes it easy to insert and configure the columns across different drawing types.

Key Features

  • ✅ Fully parametric blocks with adjustable dimensions
  • ✅ Clean and lightweight CAD geometry
  • ✅ Dynamic Top, Front, and Section views

Multiple View Modes (All in One Block)

Each block includes 3 view types:

  1. Top View
  2. Front View
  3. Side View

What’s in the palette

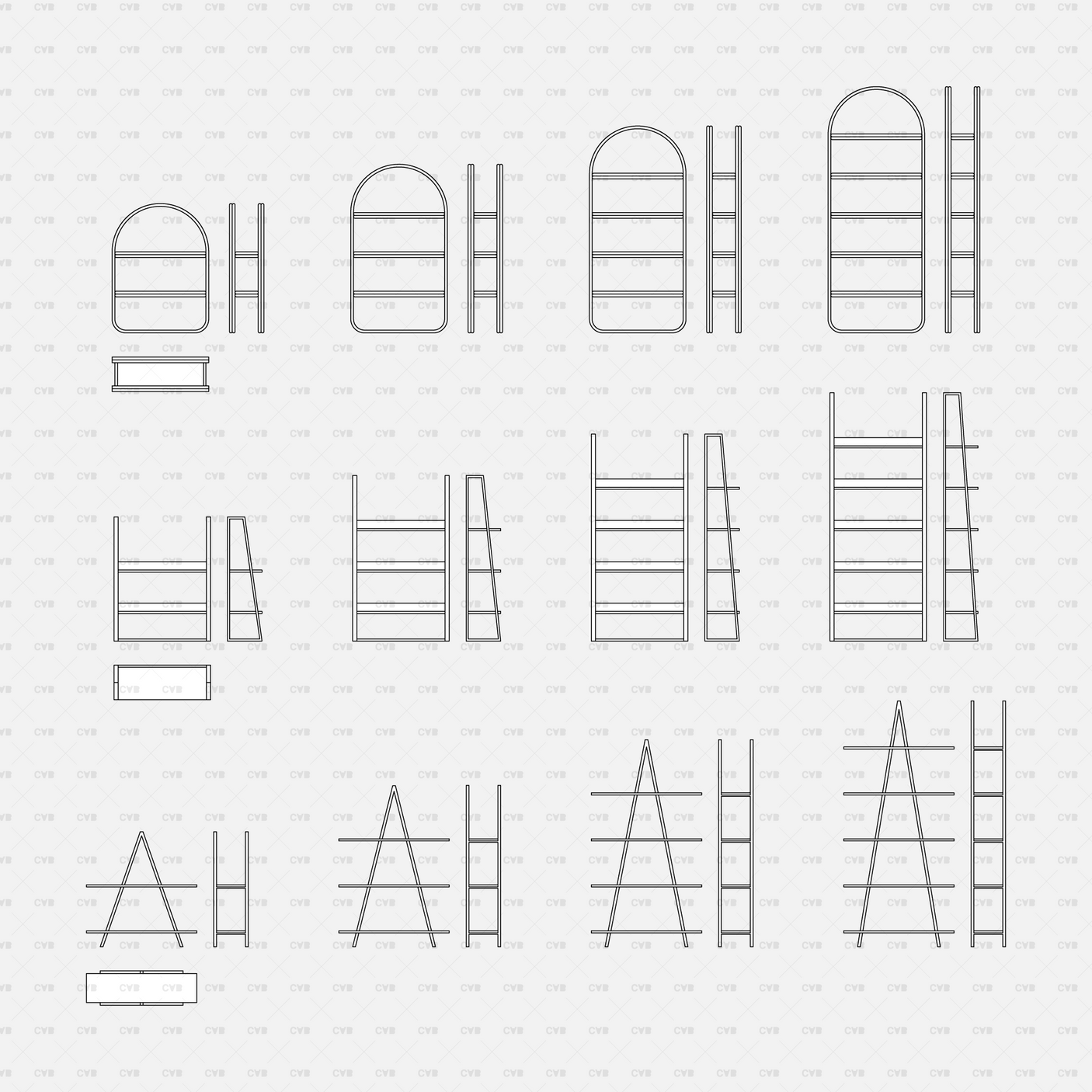

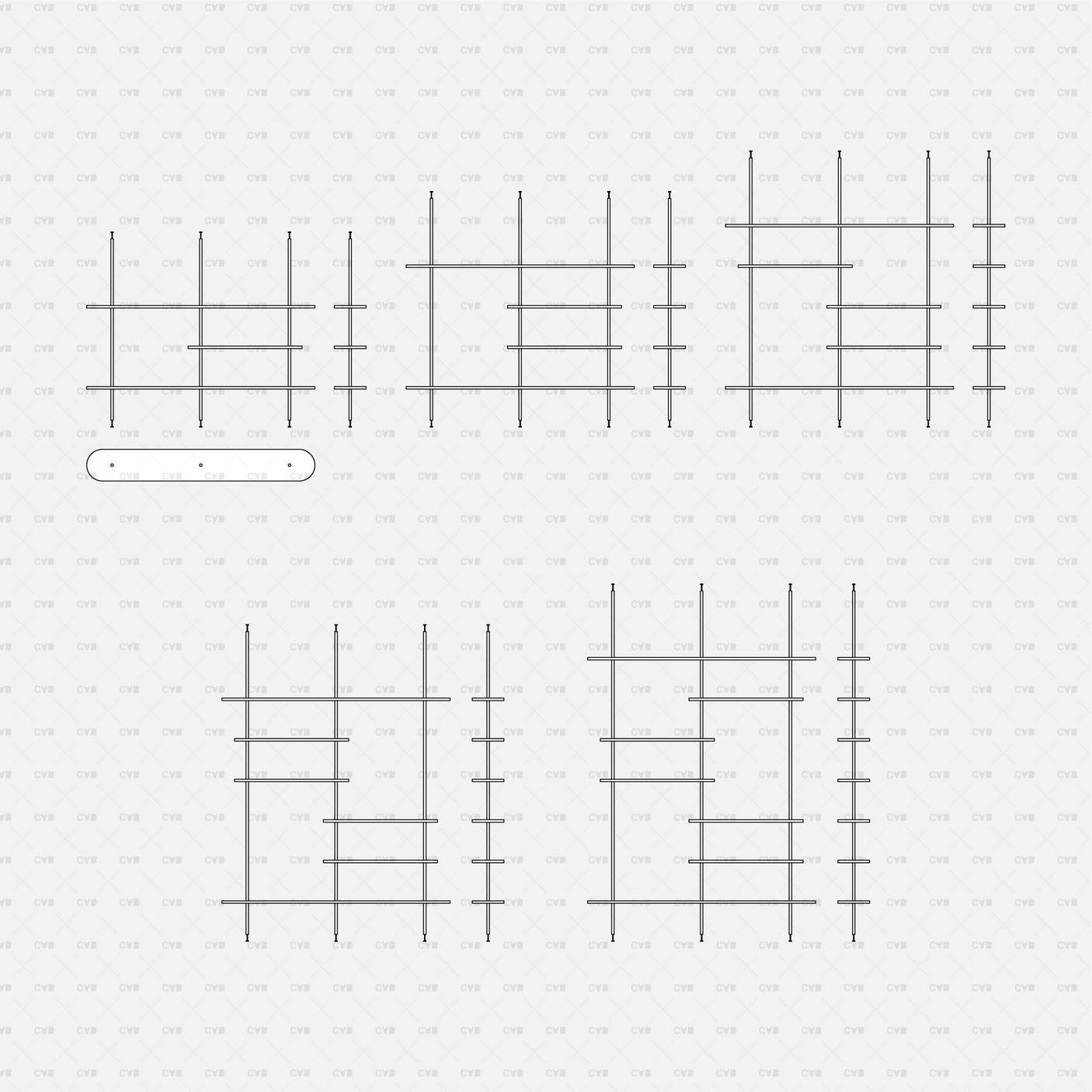

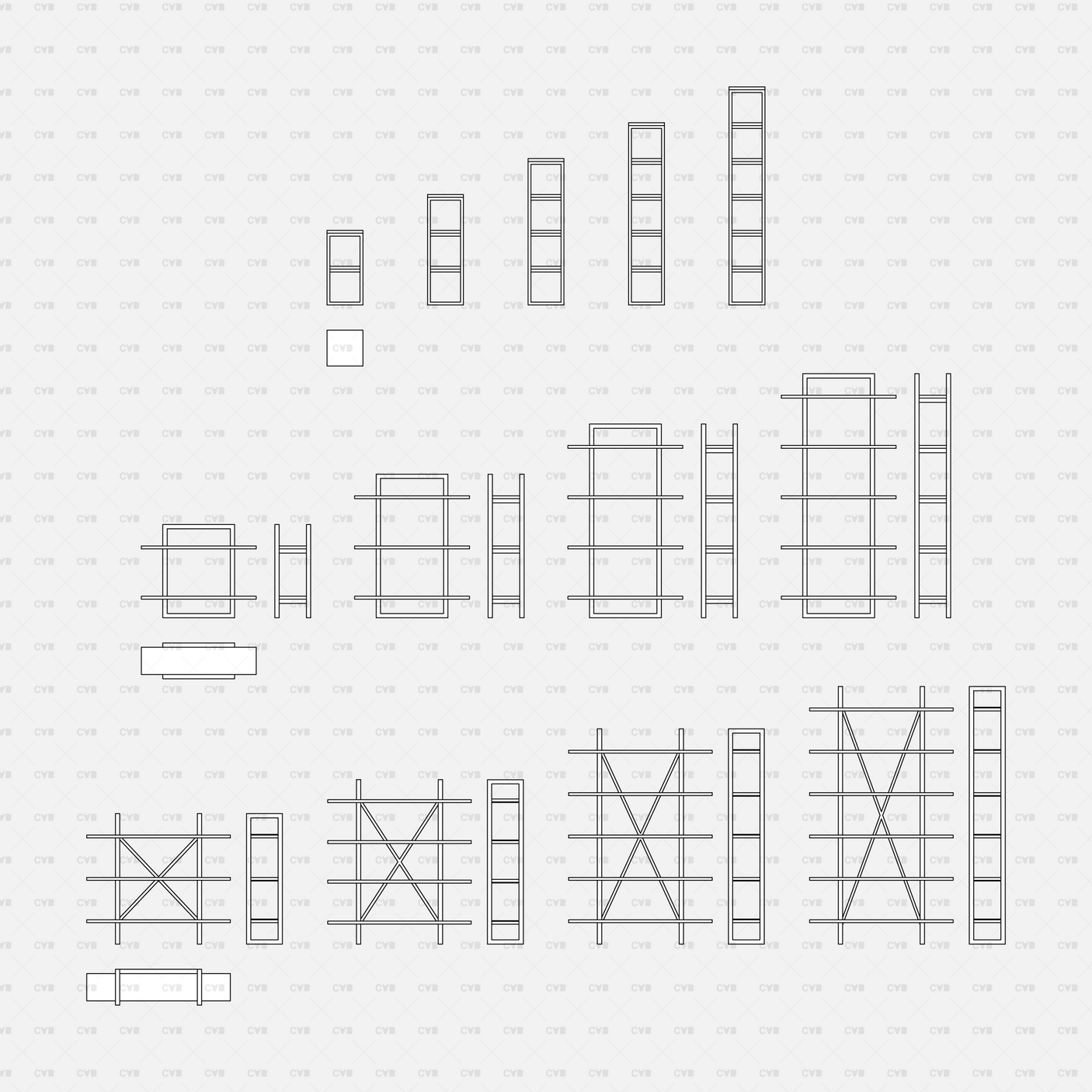

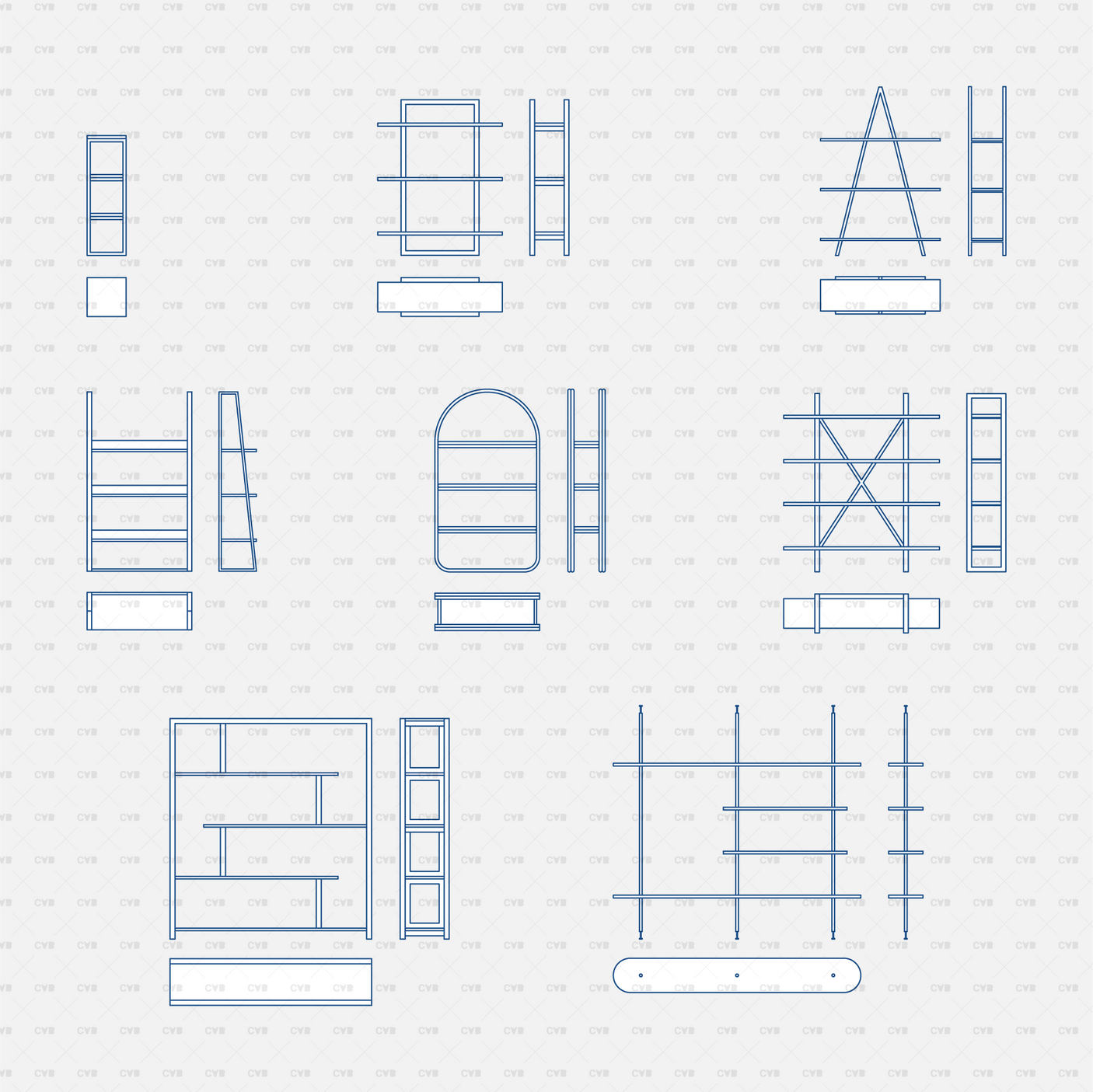

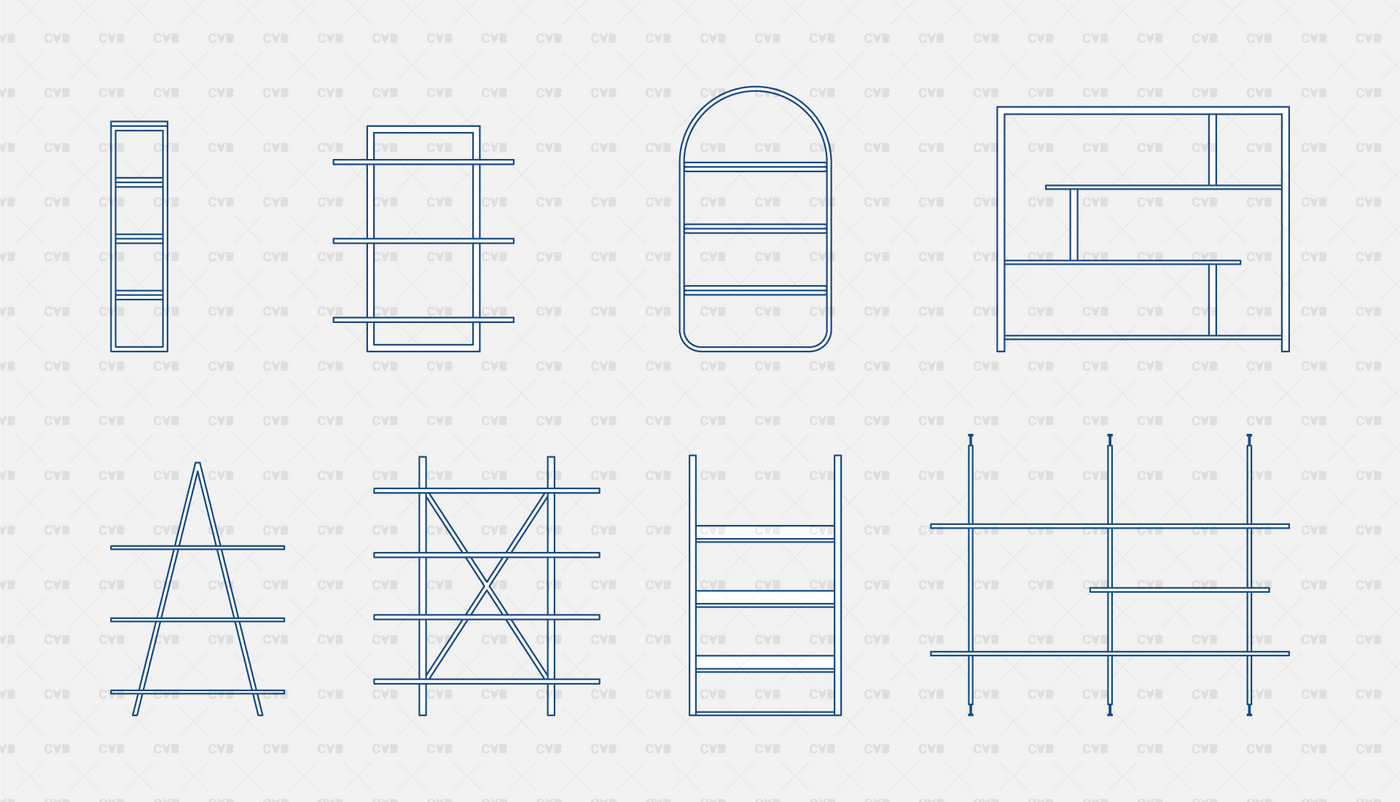

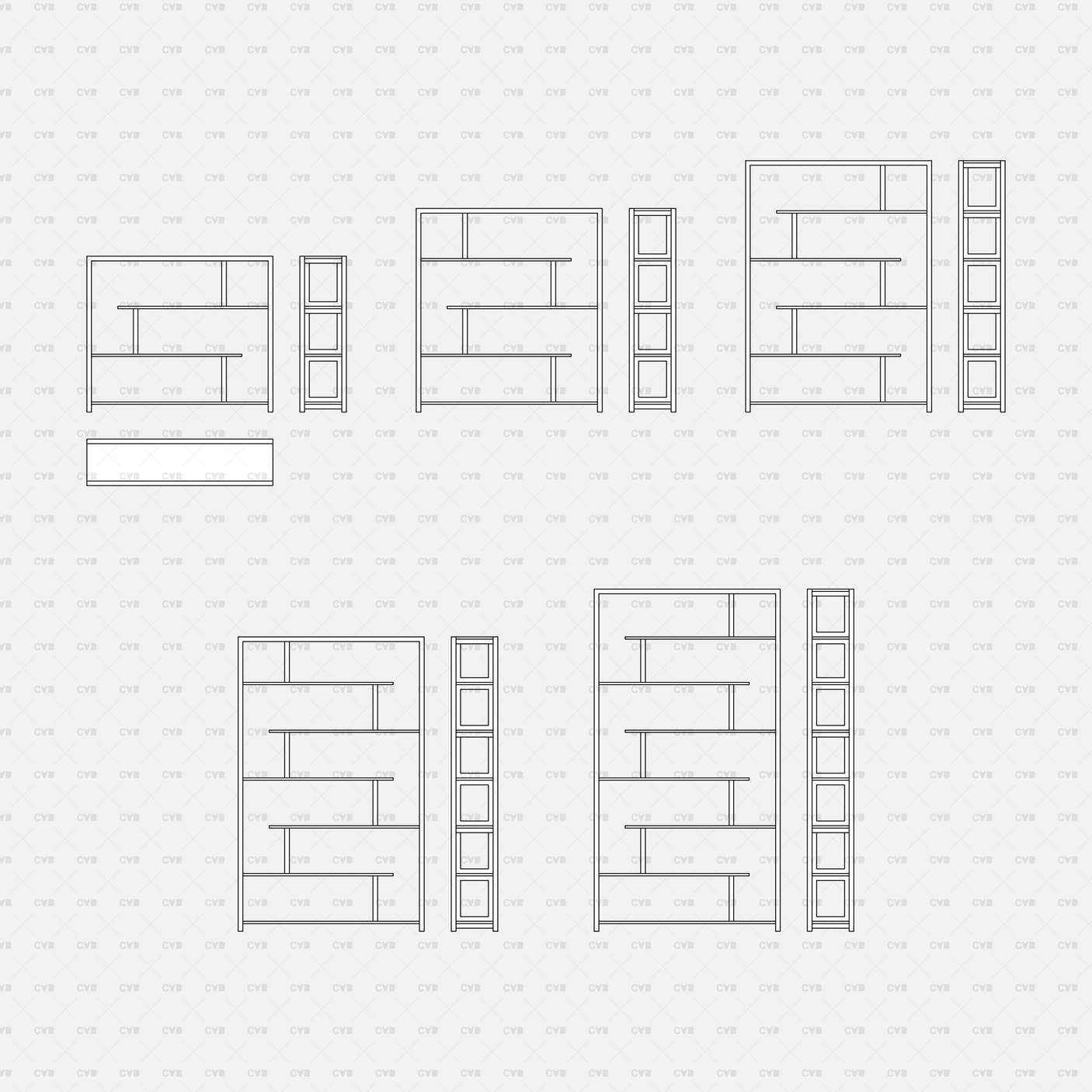

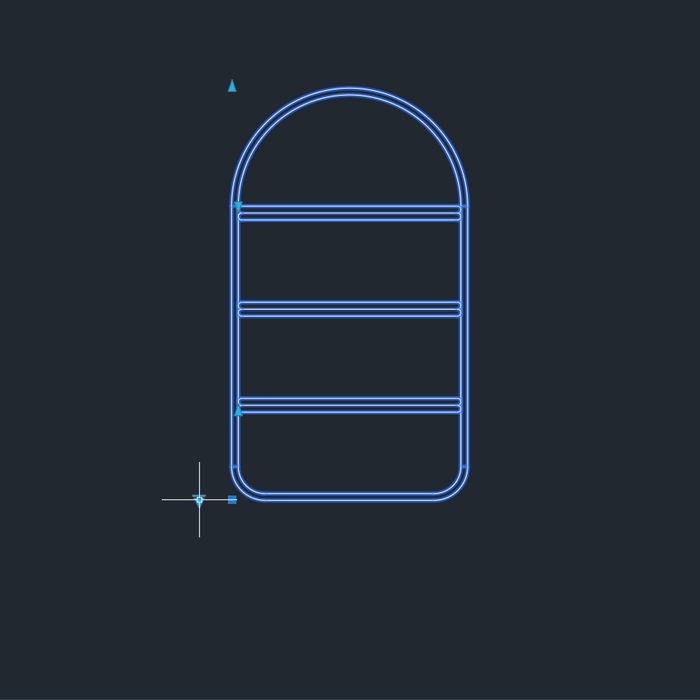

  • 8 ready-to-use dynamic blocks: Ladder Shelf, A-Frame Shelf, Cross-Braced Shelf, Modular Bookcase, Tall Bookcase, Display Island, Wall Grid System, Arched Display Shelf.
  • Clean plan/front/side linework with consistent layer naming.

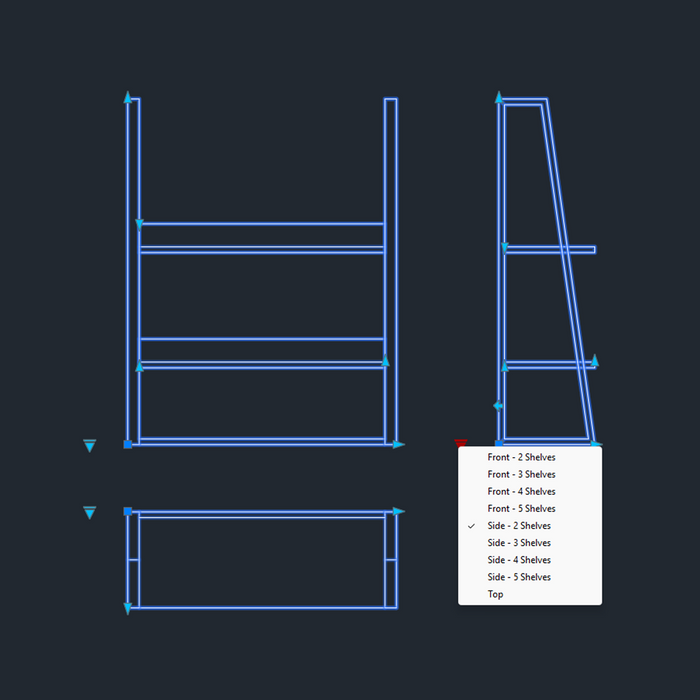

  • Common dynamic actions: stretch, flip, array, and visibility states for shelves and uprights.

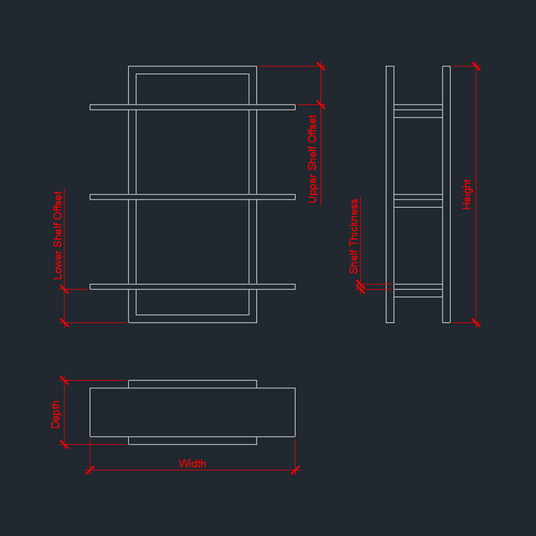

Shelves Parameters

  • Lower Shelf Offset
  • Upper Shelf Offset
  • Shelf Thickness
  • Height
  • Depth
  • Width

Seamless Wall Integration

  • Base point and dynamic alignment for quick placement

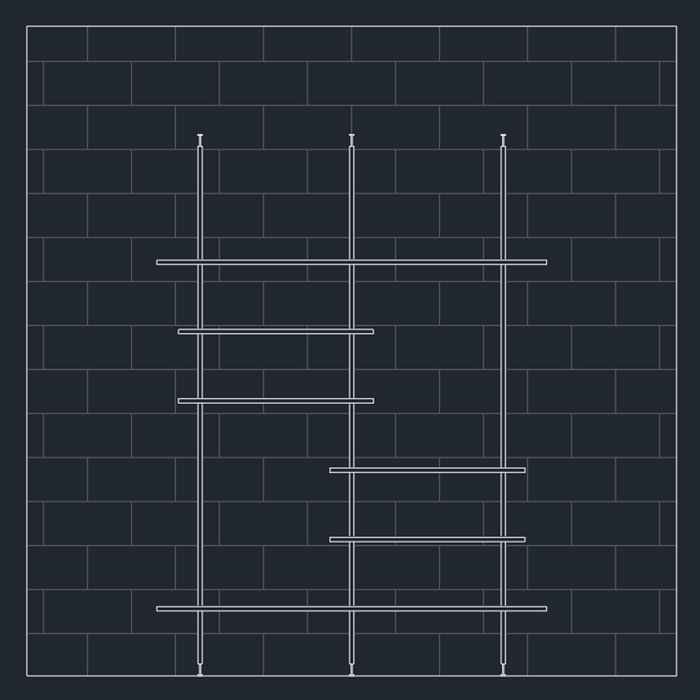

  • Wipeout masking for clean plan/section cutouts

Download the best Dynamic Blocks

  • Opaque Background

    It is like a magical white background! Our Blocks are super user-friendly and have a built-in background using a Wipeout to make them opaque and get your graphics ready by only placing the Blocks!

  • Dynamic CAD Blocks

    Our Dynamic CAD blocks allow users to modify dimensions and parameters easily, providing flexibility and adaptability in various design scenarios.

  • Perfect Layers and Base Point

    We ensure that each CAD block is organized on Layer 0, making it easier for users to control visibility and manage drawing elements efficiently. Also, our Blocks' base point is always in the right spot to create the perfect grip!

Professional Dynamic CAD Blocks

Forget about static CAD Blocks!

We focus on delivering precisely what architects and designers have been seeking—high-quality dynamic CAD blocks designed to streamline, not hinder, their projects. We're committed to offering expertly crafted blocks that are practical and straightforward, helping elevate any project's quality.
